Button Clamp Gripper Chains Specifications

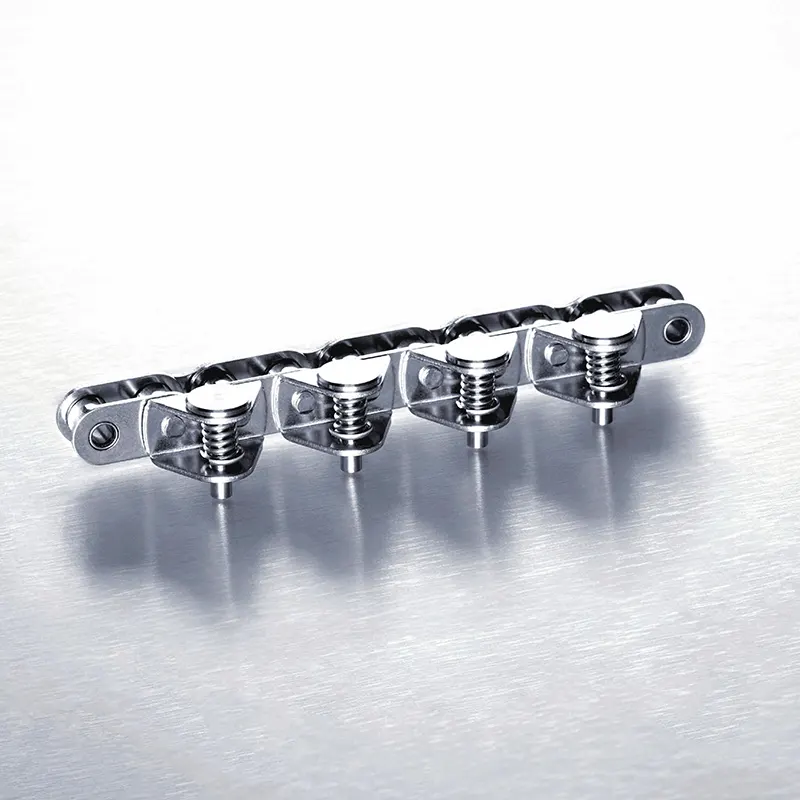

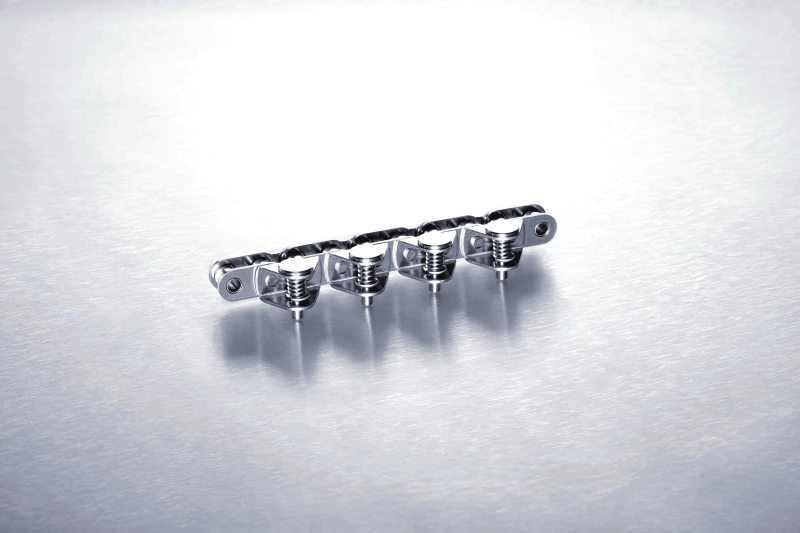

Type G Button Clamp
| HZPT Code | DIN/ISO | Material | Pitch | Inside Width | Roller Dia | Clamp Moving | Clamp Force | Tensile Strength | |||
| Base Chain | Clamp | Spring | P mm | b1 Max mm | d1 Max mm | Vertical x mm | Horizontal y mm | Q-C N | Q Min. kN | ||
| 10B1GC-G | 10B-1 | SS | SS | SS | 15.875 | 9.65 | 10.16 | 3.3 | 一 | 80 | 18.5 |
| 10B-1 | NP | SS | SS | 15.875 | 9.65 | 10.16 | 3.3 | 一 | 80 | 22.4 | |
Type H Button Clamp
| HZPT Code | DIN/ISO | Material | Pitch | Inside Width | Roller Dia | Clamp Moving | Clamp Force | Tensile Strength | |||
| Base Chain | Clamp | Spring | P mm | b1 Max mm | d1 Max mm | Vertical x mm | Horizontal y mm | Q-C N | Q Min. kN | ||
| 10B1GC-H | 10B-1 | SS | SS | SS | 15.875 | 9.65 | 10.16 | 3.3 | 一 | 80 | 18.5 |
| 10B-1 | NP | SS | SS | 15.875 | 9.65 | 10.16 | 3.3 | 一 | 80 | 22.4 | |
Overview of Gripper Chains with Type G/H Button Clamp
Gripper Chains with Type G/H Button Clamp provide symmetrical rotation and offer excellent holding force for transporting various materials. These chains are designed to prevent swiveling outwards when opened, ensuring reliable and secure operation. Available in both Nickel Plated and Stainless Steel options, these chains boast exceptional corrosion resistance.
The stainless springs used in these gripper chains are made of high-quality material imported from Japan, guaranteeing consistent clamping force. The base chain, crafted from AISI 630HT, a highly durable stainless steel, ensures remarkable wear resistance. Each strand of the gripper chain is pre-stretched and matched, facilitating trouble-free machine setup.
The Gripper Chains with Type G/H Button Clamp find widespread application in various industries, particularly for Form, Fill, and Vacuum Seal wrapping applications. In the food industry, these chains are commonly used for packaging ham, sausage, cheese, bread, fish, and more. The electronics industry utilizes them for packaging wires, while the medical industry relies on them for packaging injection syringes, pharmaceutical products, and more.
For those requiring a lube-free option, a Nickel Plated chain version is also available upon request.
 |  |

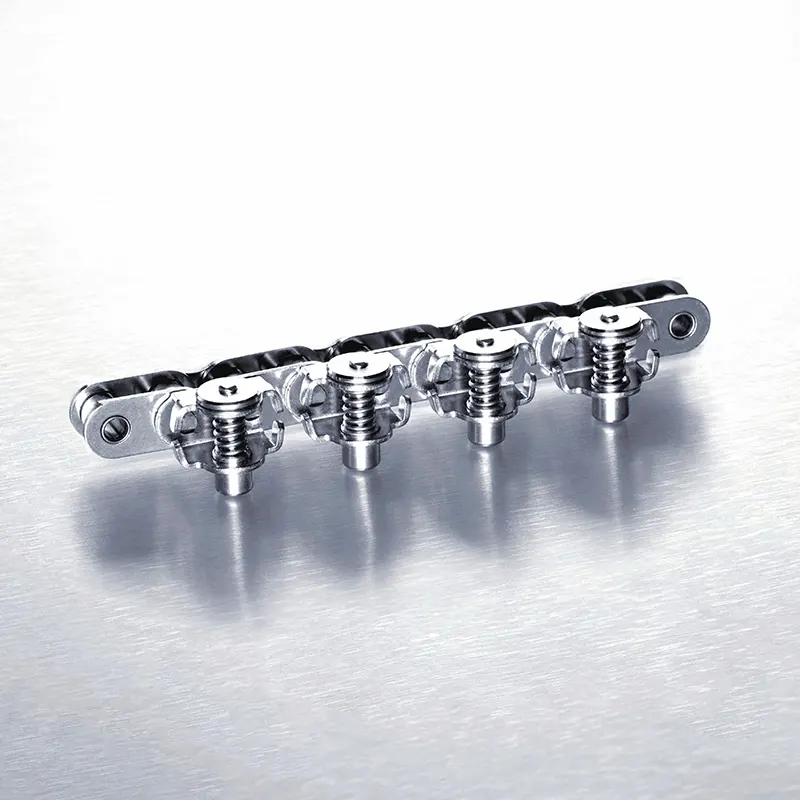

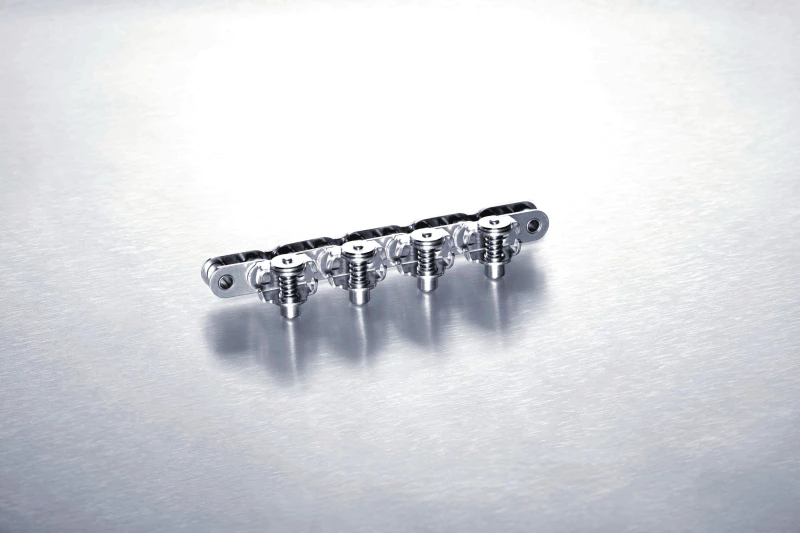

Gripper Chains with Type G/H Button Clamp Features
The Gripper Chains with Type G/H Button Clamp are designed for symmetrical rotation, allowing for efficient and secure transport of materials. The holding force of these chains is determined by the specific material being transported, ensuring optimal clamping power.
Unlike other clamps, the Type G Button Clamp does not swivel away outwards when opened, providing enhanced stability and ease of use.
Our Gripper Chains with Type G/H Button Clamp offer a range of features:
- Available in Nickel Plated and Stainless Steel options for excellent corrosion resistance
- Stainless springs made of Japan-imported material to ensure consistent clamping force
- AISI 630HT Pin & Bush in stainless steel base chain for outstanding wear-resistance
- Supplied in Pre-stretched and matched strands for trouble-free machine set-up
- Option for Lube-free Nickel Plated chain version upon request
With our Gripper Chains, you can rely on their durability and performance in various industries for Form, Fill, and Vacuum Seal wrapping applications. They are widely used in:
- Food Industry: Packaging for Ham, sausage, cheese, bread, fish, etc.
- Electronics Industry: Packaging for wires, etc.
- Medical Industry: Packaging for injection syringe, pharmaceutical, etc.
How Does Grip Chains Work?
Grip Chains are a crucial component in Gripper Chains with Type G/H Button Clamp, designed to provide efficient and reliable gripping functionality. These chains operate using a unique mechanism that allows for secure and stable holding of objects.
The main principle behind the functioning of Grip Chains is the precise alignment and interlocking of individual chain links. This allows for the creation of a strong and continuous gripping surface. When the chain is engaged, the links firmly grip the object, preventing any unintentional slippage or movement.
The primary purpose of Grip Chains is to ensure a secure hold on the objects being manipulated by the Gripper Chains. This is especially important in applications where precision and stability are critical, such as in automation systems or material handling equipment.
Gripper Chain Applications
1. Food Industry: Gripper chains with Type G/H Button Clamp are widely used in the food industry for various packaging applications. They are particularly suitable for packaging products such as ham, sausage, cheese, bread, and fish. The symmetrical rotation capability of the Button Clamp allows for efficient and secure packaging of these food items.
2. Electronics Industry: Gripper chains with Type G/H Button Clamp find applications in the electronics industry, specifically in wire packaging. The secure clamping force provided by the stainless springs ensures that wires are securely held in place during the packaging process, preventing damage or tangling.
3. Medical Industry: In the medical industry, Gripper chains with Type G/H Button Clamp are used for packaging various medical products, including injection syringes and pharmaceutical items. The reliable clamping force of the Button Clamp ensures that these delicate items are securely packaged, maintaining their integrity throughout the transportation and storage process.
How to Order Our Film Gripper Chains?
In order to order our Film Gripper Chains with Type G/H Button Clamp, please consider the following aspects:
- Chain Size: You can choose either 08B or 10B chain size.
- Strand: Select the number of strands you need for your application.
- Clamp Type: Determine whether you require Type G or Type H button clamp.
- Base Chain Material: You can choose between Stainless Steel or Nickel-Plated Carbon Steel as the base chain material.
Sprockets for Gripper Chains
In Gripper Chains with Type G/H Button Clamp, the chain and the sprocket work together in harmony to ensure smooth and efficient operation. The chain relies on the sprocket to maintain proper tension and to transmit power, while the sprocket requires the chain to maintain proper alignment and engagement.
It is crucial to select the appropriate sprocket for your Gripper Chain with Type G/H Button Clamp. Our product line includes a range of sprockets that are specifically designed to work with these chains and provide optimal performance. These sprockets are made of high-quality materials and are precision machined to ensure a perfect fit with the chain.
At our company, we understand the importance of having the right sprocket for your application. That’s why we offer a wide selection of compatible sprockets for Gripper Chains with Type G/H Button Clamp. Our sprockets are manufactured to the highest standards and are designed to provide reliable and long-lasting performance.
