Gripper Chains with Type B Standard Frame Clamp

Description

Gripper Chains with Standard Frame Clamp Specifications

Gripper Chains with Type B Standard Frame Clamp are an excellent choice for Form, Fill, and Vacuum Seal wrapping applications across various industries, including food, electronics, and medical industries. The Standard Frame Clamp (Type B) enables easy film engagement and scrap release, with its vertical movement and horizontal rotation features.

Our Gripper Chains are available in both Nickel Plated and Stainless Steel, offering excellent corrosion resistance. The stainless steel springs are made with imported Japanese materials, ensuring consistent clamping force; the pins and bushings are made of AISI 630HT steel, offering excellent wear resistance. Furthermore, our clamping chains feature pre-stretched and matched links, guaranteeing smooth and unobstructed machine installation. We also offer a lubrication-free nickel-plated chain version upon request.

Choose UK pto-drive-shafts.com Co.,Ltd Gripper Chains with Type B Standard Frame Clamp for their exceptional quality, reliability, and versatility in packaging various products, including ham, sausage, cheese, bread, fish, wires, injection syringe, and pharmaceuticals.

B-08B1	B-10B1

Features of Gripper Chains with Type B Standard Frame Clamp

The Gripper Chains with Type B Standard Frame Clamp are designed to provide a combination of vertical movement and horizontal rotation, which ensures easy film engagement and scrap release. These chains are widely used in various industries for Form, Fill and Vacuum Seal wrapping applications.

Features of these chains include:

• Base Chains available in both Nickel Plated and Stainless Steel for excellent corrosion resistance
• Stainless springs made of Japan-imported material which ensures the clamping force always maintains its strength
• Pin & Bush made of AISI 630HT in stainless steel base chain provides outstanding wear-resistance
• Supplied in Pre-stretched and matched strands which guarantee trouble-free machine set-up
• Lube-free Nickel Plated chain version available upon request

These features make Gripper Chains with Type B Standard Frame Clamp an ideal choice for packaging applications in the food, electronics, and medical industries. They are perfect for packaging ham, sausage, cheese, bread, fish, wires, injection syringes, pharmaceuticals, and more.

How Does Grip Chains Work?

Grip Chains are an integral part of the Gripper Chains with Type B Standard Frame Clamp. These chains are designed to provide a reliable and secure grip on various objects in industrial applications.

The working principle of Grip Chains is based on their unique design and construction. They consist of interconnected links that form a continuous chain. The links are specially shaped and have gripping teeth or protrusions that help in effectively gripping the objects.

When the Gripper Chains with Type B Standard Frame Clamp is activated, the Grip Chains come into action. The chains are wrapped around the object and tightened using the clamp mechanism. As the tension increases, the gripping teeth on the chains dig into the surface of the object, providing a strong and reliable hold.

The primary function of Grip Chains is to securely hold and transport objects during industrial processes such as material handling, assembly lines, and conveyor systems. They ensure that the objects remain in place, preventing any accidental movement or slippage.

Gripper Chain Applications

1. Food Industry: Gripper chains with Type B Standard Frame Clamp are widely used in the food industry for packaging various products such as hams, sausages, cheeses, bread, and fish. The vertical movement and horizontal rotation provided by the clamp ensure easy engagement of the film and release of scraps.

2. Electronics Industry: Gripper chains find extensive applications in the electronics industry for packaging wires and other related products. The Type B Standard Frame Clamp allows for precise positioning and secure gripping of the items, ensuring proper packaging.

3. Medical Industry: Gripper chains with Type B Standard Frame Clamp are utilized in the medical industry for packaging items like injection syringes and pharmaceutical products. The clamp’s ability to combine vertical movement and horizontal rotation facilitates efficient and reliable packaging.

How to Order Our Film Gripper Chains?

If you are interested in ordering our Gripper Chains with Type B Standard Frame Clamp, please consider the following factors:

• Chain Size: You can choose from 08B or 10B chain sizes depending on your specific needs.
• Strand: You can select the number of strands that you require for your application.
• Clamp Type: Our Gripper Chains come with Type B Standard Frame Clamp, which is suitable for most applications.
• Base Chain Material: We offer two options for base chain material – Stainless Steel and Nickel-Plated Carbon Steel. Please choose the one that best suits your application requirements.

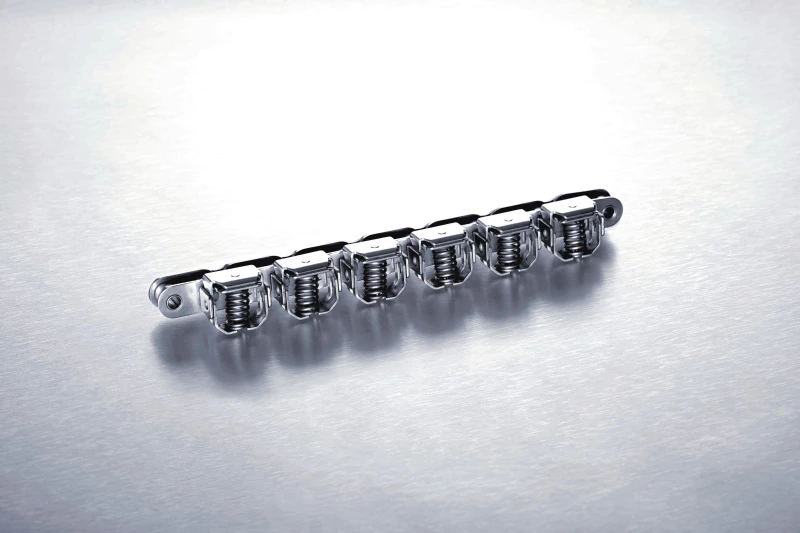

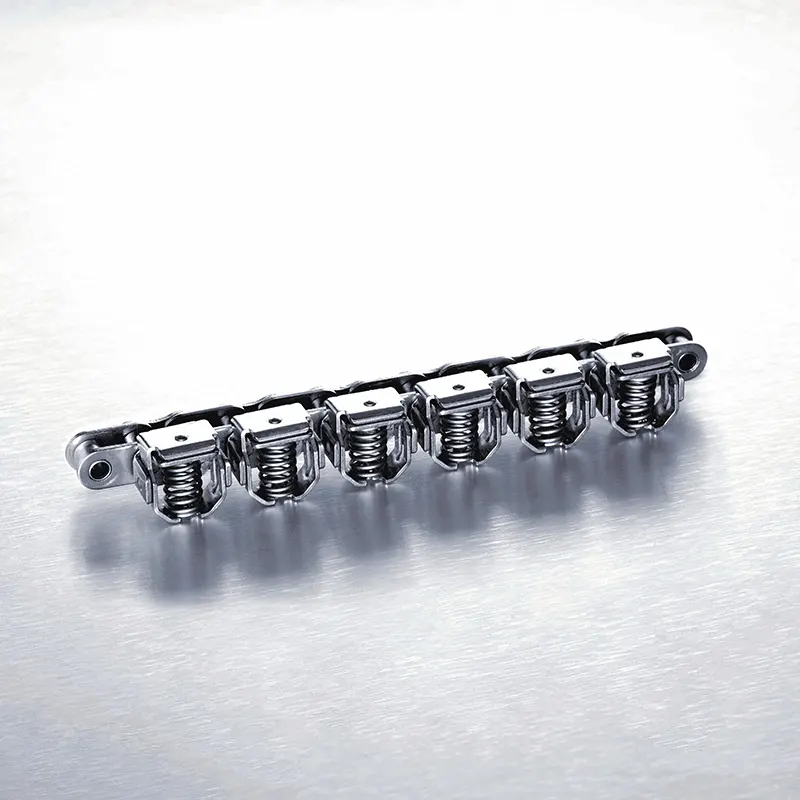

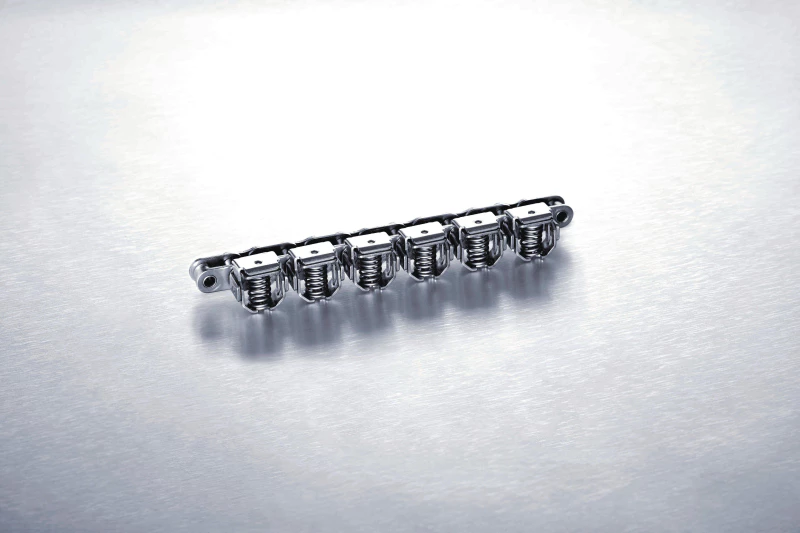

Here is an image of our Gripper Chains with Type B Standard Frame Clamp:

Sprockets for Gripper Chains

In Gripper Chains with Type B Standard Frame Clamp, the chain and sprocket work together in a complementary fashion, with each component playing a crucial role in the overall system. The chain provides the gripping and conveying action, while the sprocket transmits power and provides control over the motion of the chain.

It is important to choose the right sprocket for the chain to ensure optimal performance and longevity of the system. The Gripper Chains with Type B Standard Frame Clamp require a compatible sprocket that is designed to work seamlessly with the chain. Our company offers a range of sprockets that are designed to work with these chains, ensuring that you get the best possible performance and reliability from your equipment.

Here is our product introduction for the sprockets compatible with Gripper Chains with Type B Standard Frame Clamp:

– Material: High-grade steel
– Tooth profile: Specially designed for optimal chain engagement and reduced wear
– Sizes: Available in a range of sizes to suit different chain configurations
– Finishing: Precision-machined and heat-treated for improved durability and wear resistance

We understand the importance of having reliable and high-quality components for your industrial equipment. That is why we offer a range of sprockets that are compatible with Gripper Chains with Type B Standard Frame Clamp. Our sprockets are designed and manufactured to the highest standards, ensuring that you get the best possible performance and durability from your equipment.

About Us

With over 20 years of experience in stainless steel chain manufacturing, we have become one of the leading manufacturers in China. Through continuous research and investment, we now offer almost all mainstream clamping chain models. These high-performance chains are highly popular with OEMs and aftermarket customers both domestically and internationally.

Our Gripper Chains with Type B Standard Frame Clamp are designed for effective and secure clamping in various applications. These chains are robust, durable, and reliable, ensuring efficient material gripping and handling.

UK Power Drive Shafts Co., Ltd. prides itself on its superior manufacturing capabilities and product quality. Our chains are precision-manufactured and undergo rigorous quality control to meet international standards. We ensure that every chain can withstand demanding operating conditions and perform at its best.

In addition to superior quality, we offer highly competitive prices and excellent customer service. Our dedicated team is ready to answer any questions you may have.

s or orders. We strive to provide a seamless buying experience and ensure customer satisfaction.

We strongly encourage you to explore our Gripper Chains with Type B Standard Frame Clamp and contact us for purchasing. Experience the reliability and efficiency that our chains offer for your gripping needs.
