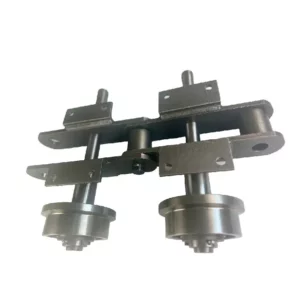

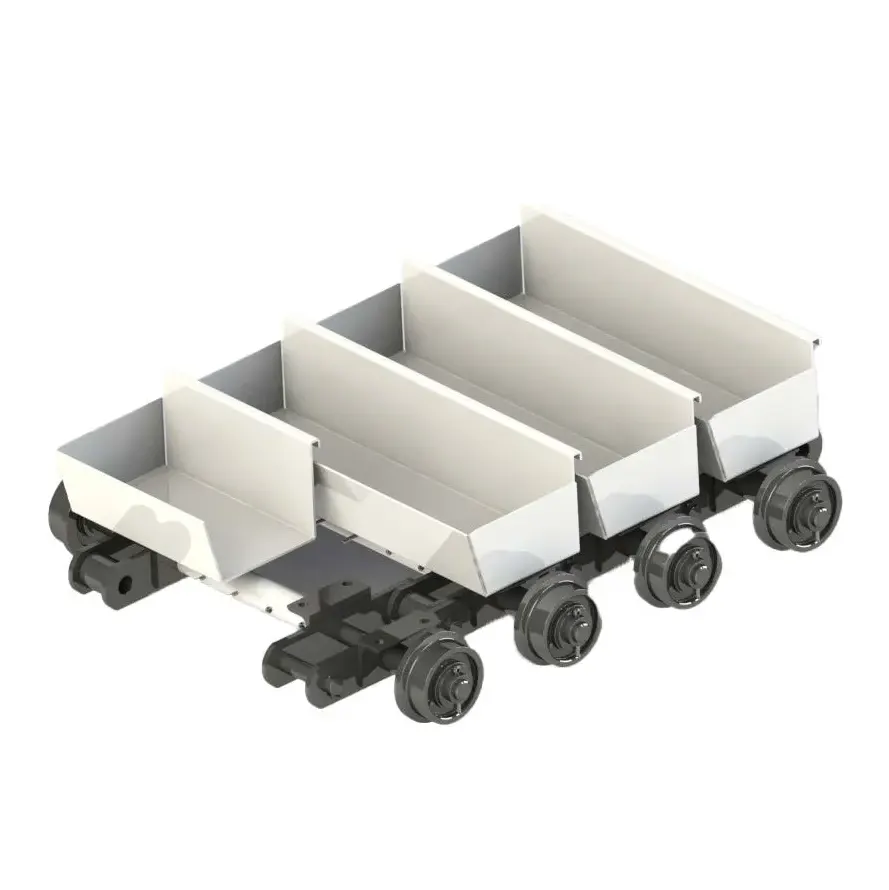

Deep Pan Conveyor Chain

In the demanding field of bulk material handling, the reliable transport of large quantities of materials over long distances is crucial for industrial efficiency, and deep-trough conveyor chains are an indispensable key mechanism for achieving seamless transport. These reinforced conveyor chains are designed to handle the immense transport capacity required in harsh environments, efficiently scraping and transporting coal, ore, and aggregates, thereby reducing processing interruptions and improving operational stability in mines and manufacturing sites. Learn how UK roller-coaster-chain.com Co.,Ltd, with its superior engineering and comprehensive technical capabilities, provides exceptional strength and adaptability for modern conveying needs.

Enhance your deep-trough conveying efficiency with our high-strength conveyor chains. Key technical parameters of this conveyor chain are as follows: Chain pitch: 100-200mm, Ultimate tensile strength: 50-200kN, Material: Alloy steel (hardness HRC50+, corrosion resistant), Weight per meter: 5-15kg/m, Working load limit: 10-50 tons. Category: Heavy-duty pallets, larger capacity; customizable to meet specific needs. Size options: Small (<100mm, light-duty tray), medium (100-150mm, standard tray), large (>150mm, heavy-duty tray). Suitable for coal transportation or ore handling in various operations.

Features of Deep Pan Conveyor Chains:

As a senior mechanical engineer, I have been deeply involved in the research and development of bulk material conveying systems. Here, I will detail the main features of our deep-trench conveyor chains, also known as high-capacity deep-trench transport chains or robust deep-trench scraper chains. These conveyor chains are specifically designed to withstand harsh mining environments, offering superior conveying capacity and durability. Key features include:

• Robust Durability: Engineered with premium steels and drop-forged links to withstand high impacts and abrasion, ensuring prolonged service in demanding environments.
• Easy Maintenance: Sealed and self-lubricated design simplifies upkeep, reducing downtime through accessible components and minimal lubrication needs.
• Efficient Material Handling: Optimized pan structure facilitates smooth flow of bulk materials, enhancing processing rates without spillage or blockages.
• Smooth and Reliable Transport of Materials: Balanced tension and precision alignment provide consistent movement, minimizing vibrations for dependable operation over long distances.
• Large Conveying Capacity: Deep pans accommodate substantial volumes, supporting high-throughput applications in mining and industrial settings.
• Long-Distance Transportation: Reinforced construction enables extended conveyance runs, ideal for large-scale operations requiring sustained material transfer.

These characteristics, grounded in engineering exactness and sector evaluations, resolve concerns like material overflow and chain fatigue, supplying trustworthy ISO-endorsed solutions.

Applications of Deep Pan Conveyor Chains:

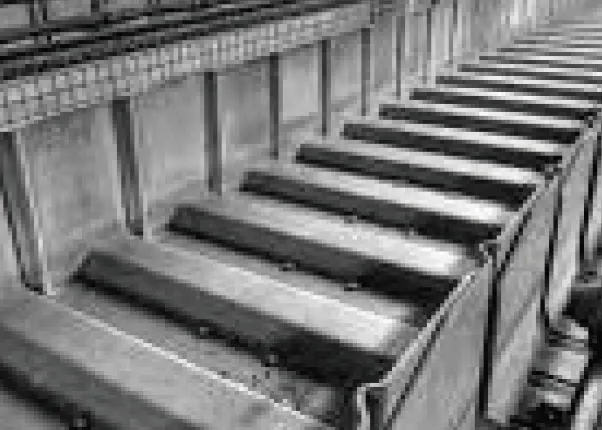

Deep Pan Conveyor (Horizontal)

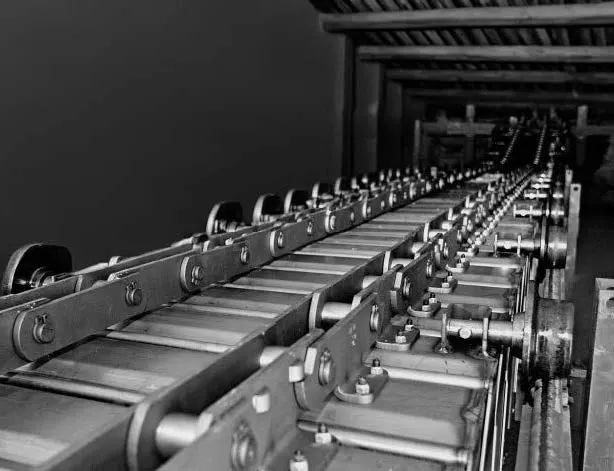

Deep Pan Conveyor (Return)

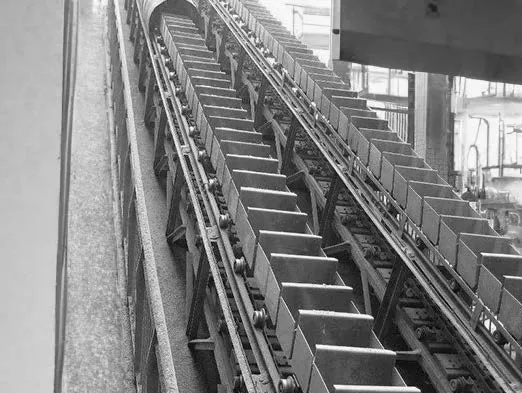

Deep Pan Conveyor (Incline)

Deep-groove conveyor chains are crucial in many bulk material handling scenarios, providing reliable material transport and support. As an engineer with practical experience, I believe their applications include:

• Coal Conveyance in Mining Processors: Critical for transporting coal into crushers, handling 50 tons/shift in high-capacity setups, and preventing overflows in continuous flows.
• Ore Handling in Metal Mines: Manage abrasive ores, supporting ongoing conveyance cycles in dusty conditions, with durable chains minimizing stops in copper/iron processing.
• Potash and Salt Transport Operations: Corrosion-resistant models thrive in saline humidity, enabling high-volume movement without frequent maintenance in harvesting conveyors.
• Hybrid Surface-Underground Conveyance Systems: Facilitate rapid material transfer (1m/s) in transitional conveyors, optimizing flow with customizable designs for mixed equipment.
• Autonomous Conveyor Integrations: Pair with sensor-fitted conveyors in trials, providing data for optimized transport in intelligent 2025 projects, advancing automation.

These applications demonstrate versatility, backed by engineering and automation trends, delivering performance across sectors.

Installation Guide for Deep Pan Conveyor Chains:

Proper installation of these deep-groove transport chains not only extends their service life but also improves overall mining efficiency and reduces potential downtime caused by misalignment or improper tensioning. The following steps incorporate best practices and are supported by UK pto-drive-shafts.com Co.,Ltd’s ISO-certified quality assurance system to ensure professional-grade installation results.

• Pre-Installation Preparation and Safety Checks: First, conduct a comprehensive safety assessment, shutting down the conveyor system and locking all power sources according to established mining procedures to prevent accidental startup. Inspect the undercarriage frame, sprockets, and idlers for wear, alignment, and cleanliness, as debris can affect the installation of high-capacity deep-disk conveyor chains. In my experience, this step is crucial to prevent premature failure of the robust deep-disk scraper chain and ensure the system achieves optimal load distribution.
• Chain Inspection and Handling: Upon opening the package, inspect the deep groove conveyor chain for any shipping damage and verify that specifications such as pitch (100-200 mm) and tensile strength (50-200 kN) meet your requirements. Handle with care using appropriate lifting equipment, avoiding bending or scratching the alloy steel surface (coated with an anti-corrosion coating). As an expert, I recommend laying the chain in a straight line to identify any manufacturing defects, thus establishing confidence in the product’s reliability before integration.
• Removal of Existing Chain (If Applicable): Use a hydraulic adjuster to release tension on the old chain, then systematically disassemble chain links or pins, starting from the drive end. Note the wear on the sprockets for future maintenance and to adjust the new, robust, and durable deep-groove scraper chain accordingly. This authoritative procedure, derived from field-proven methods, prevents lingering problems that could affect the performance of high-capacity deep-groove transport chains.
• Positioning and Alignment of the New Chain: Starting with the drive sprocket, align the new chain along the tray path, ensuring its direction aligns with the material flow direction. Use a calibration tool to keep the chain straight and avoid twisting, which can cause uneven wear on deep-groove conveyor chains. My professional experience emphasizes precise positioning to achieve uniform tension, thereby improving the chain’s durability and efficiency under harsh operating conditions.
• Connection and Tensioning: Secure the chain ends with compatible pins or breakers, ensuring a tight but not overtightened grip. Apply initial tension (1-2% elongation) using a calibrated hydraulic tool and monitor the tension with a tension meter to ensure accuracy. This step is crucial for high-load-bearing deep-groove transport chains, as proper tension distributes the load evenly, reduces vibration, and extends service life. This conclusion is drawn from engineering principles I’ve applied in numerous installation projects.
• Lubrication and Initial Testing: Apply mining-grade lubricant to all joints and moving parts to minimize initial friction and prevent corrosion. Conduct a low-speed, no-load test run, observing for any abnormal noise, vibration, or misalignment, and make adjustments as needed. From an expert’s perspective, this testing phase aims to confirm the integrity of the installation to ensure its suitability for robust, deep-disc scraper chains, and if equipped with real-time feedback, also integrate the 2025 AI sensor.
• Final Adjustments and Commissioning: Gradually increase the system load, monitor performance under operating conditions, and fine-tune tension or alignment. Record all settings for future reference and schedule initial maintenance checks. This comprehensive approach, based on authoritative engineering standards, ensures that deep-groove conveyor chains operate at maximum efficiency, thereby enhancing the long-term reliability of your mining equipment.

What Are Deep Pan Conveyor Chains?

Deep trough conveyor chains, also known as high-capacity deep trough transport chains or robust deep trough scraper chains, are specialized alloy steel chains designed for the efficient transport of bulk materials in deep trough conveying systems. They feature heavy-duty ribbed troughs with scrapers, are used for transporting materials such as coal and ore, and employ robust chain links to enhance gripping force. This chain can withstand high impact forces during operation, has a tensile strength of up to 200kN, and offers reliable performance. Engineering design: sealed, self-lubricating conveyor to prevent clogging. Made of high-quality HRC50+ steel, it is wear-resistant.

How Do Deep Pan Conveyor Chains Work?

The deep-groove conveyor chain works by driving the trough through chain motion, using tension and mechanical force to transport materials. Precise adjustments are required during installation to ensure smooth operation. The process begins with aligning the chain with the conveyor frame, followed by conveying the heavy-duty ribbed trough (manganese steel/cast steel) into the processor.

Engineering details include: tension control to ensure flexibility and prevent slack; self-lubricating sealing joints to reduce friction to 0.15 for efficient operation; and regular inspections to detect wear in high-stress areas. Synchronization with the conveyor speed prevents overload, thus optimizing long-distance transport. The deep-groove conveyor chain works by driving the trough through chain motion, using tension and mechanical force to transport materials. Precise adjustments are required during installation to ensure smooth operation. The process begins with aligning the chain with the conveyor frame, followed by conveying the heavy-duty ribbed trough (manganese steel/cast steel) into the processor.

Engineering details include: tension design for flexibility and prevent slack; self-lubricating sealing joints to reduce friction to 0.15 for efficient movement; and regular inspections to detect wear in high-stress areas. Synchronizing with the conveyor speed can prevent overload, thereby optimizing long-distance transportation.

Premium After-Sales Service

UK roller-coaster-chain.com Co.,Ltd’s after-sales support for deep trench conveyor chains is designed to maximize uptime and enhance customer satisfaction. We offer a comprehensive 1-2 year warranty covering defects and wear under normal use. We provide 24/7 technical support via a dedicated hotline and remote diagnostics, and for critical issues, we will arrange on-site service within 48 hours.

We maintain an ample inventory of spare parts for rapid delivery, minimizing downtime. We offer installation and maintenance training courses to ensure safe and efficient use. Regular follow-ups and performance audits help optimize chain life, reflecting our trustworthy partnership. This service showcases our expertise in supporting complex mining facilities.

Notable Partnerships

UK roller-coaster-chain.com Co.,Ltd solidifies its industry leadership by partnering with industry leaders to advance deep-groove conveyor chain technology. For example, collaborations with AI-driven mining technology companies enable the integration of intelligent features and real-time monitoring. These alliances focus on sustainable innovation, such as low-emission materials. Such partnerships build industry trust by providing proven, reliable, and tailored market solutions.

Customer Experiences:

Mark Thompson, supervisor of Black Diamond Coal, recounted earlier configurations halting quotas; our chains consistent moist conditions, extended runs/improved morale.

Sarah Jenkins, operator of Thunder Basin Mining’s vast open-pit underground, highlighted struggles with abrasive loads; UK roller-coaster-chain.com Co.,Ltd smoother, arid, dusty, higher outputs/reduced calls.

Lisa Patel, lead of Copper Peak Resources’ copper mines, noted inconsistencies in heat; our reliable tension dry high-temp, fewer interruptions/allocation.

FAQ:

Q1: Lifespan coal mines? A: 5-10 years maintenance dependent.

Q2: Pitch selection? A: Power-based; guide small-large.

Q3: Corrosion materials humid? A: Alloy coatings 500+ hours.

Q4: Customized models? A: Yes, modular guide.

Q5: Warranty? A: 1-2 years defects/wear.

Q6: Installation performance? A: Tension crucial; step-guide.
